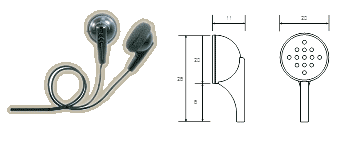

Earphone Camera ECM-01

Nothing like this has ever been offered before! The smallest earphone camera in the world!

In one of the earphones is a hidden video camera can use to capture and record video. You will fit right into the crowd and no one will have any ideas what you are actually doing.

Specification
Video System: NTSC/PAL
Number of Effective Pixels: 510 x 492(NTSC)/ 628 x 582(PAL)
CMOS Image Sensor: 1/3" CMOS Color camera
Scanning System: 2:1 Interlace
Synchronization: Internal
Resolution: 380 TV Line
S/N Radio: >48dB
Minimum Illumination: 1 Lux/F 1.2
Electronic Shutter: 1/50 - 1/125,000
Horizontal Sync Frequency: NTSC - 15.734kHz/ PAL - 15.625
Vertical Sync Frequency: NTSC - 60Hz/ PAL - 50Hz
Gamma Consumption: 0.45
Video Output: 1Vp-p, 75Ohms Composite
Built-In Lens: 3.9mm/ F 3.9 (Day & night lens)
Storage Temperature: -30 to +60°C
Working Temperature: -10 to +45°C
Power Source: DC 5-12V
Power Current: 60mA(max)
Dimension(mm): 20 x 28(mm)
