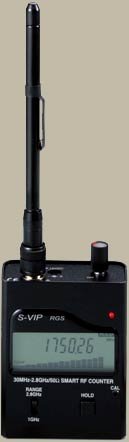

SPECIFICATIONS |
Frequency range: |
|
30 MHz - 2,8 GHz |
Sensitivity: |
less than 5 mV |
Max. input: |
15 dBm |
Resolution: |
10 KHz for digital Signals or On/Off Keying
1 KHz for Analog Signals |
Size: |
80 mm high x 68 mm wide x 31 mm deep |
Weight: |
210 g |
Impedance: |
50 Ohms (BNC Socket) VSWR less than 2:1 |
Case: |
Stamped aluminum with black anodized finish |
Battery: |
Internal 4 x AA 600 mAH NiCd pack |
Power: |
9 VDC 300 mA |
Timebase: |
Less than 1 PPM at room temperature |
|
FEATURES |
- 7 digit Liquid Crystal Display
- Frequency counter for digital, on/off keying and analog signals
with a minimum pulse width of 250 uS
- Ultra sensitive synchronous detector - 16 section bargraph to
show RF signal strength (-35dBm to 0 dBm)
- Two range positions - the 1 GHz position for frequencies between
30 MHz and 1 GHz and the 2,8 GHz position for frequencies
between 500 MHz and 2,8 GHz
- Squelch adjustment for input signals
- Hold switch to lock display
- Low battery indicator
- Vibrating alert
- Low power consumption (Average 5 hour battery life)
- Supplied with NiCd pack, AC wall charger and telescopic antenna
(143 MHz to 460 MHz)
|
CONTROLS |
|
-
SQL KNOB - This knob turns the RF counter on the tunes the squelch up or down to set the signal strength for reception.
-
RANGE SWITCH - this should be switched to the 1 GHz position for frequencies between 30MHz and 0.8GHz, switched to the 2.8 GHZ position for frequencies between 500 MHz and 2.8 GHz.
-
HOLD BUTTON - This holds the current display and stops the counter from counting.
-
CALIBRATION - This calibration adjustment opening is located on the front panel of the counter. This allows access to the trimmer capacitor that provides about a 10 PPM adjustment range of the time base oscillator. This is not usually necessary but to do so read a signal of a known frequency before adjusting the trimmer for correct frequency display. If you calibrate at 4.1943 MHz or above then the counter will be more accurate.
-
VIBRATION Switch - This switch selects the tone or vibration alert output.
|
