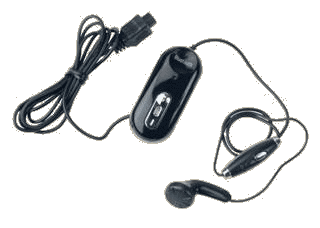

Bluetooth Camera SVW-10

Perfect for covert monitoring!
It seems like a Bluetooth Earphone, everyone else will think you are talking over the phone with your Bluetooth Earphone. No one will even notice that The best undercover equipment!

Clip the Covert Bluetooth Earphone Controller on your shirt in front of your chest. The Spy Camera is on the Controller. Adjust the Covert Bluetooth Earphone Controller to adjust the Spy Camera.

Functional Bluetooth earphone/ microphone
1/8" DSP Color CDC board
420 TV Lines
1 Lux
3.7mm Pinhole Lens
3V-6VDC

Specification

Image Sensor	1/8" Color CDC Camera Sensor
Video System	NTSC / PAL
Number of Effective Pixels	640 x 480
Scanning System	2 : 1 Interlace
Synchronization	Internal
Resolution (TV Lines)	380 TV Lines
S/N Ratio	≥48 dB
Minimum Illuminator	1 Lux at F 1.2
Electronic Shutter	1/50 ~ 1/125,000
Horizontal Sync Frequency	15.734 KHz (NTSC) / 15.625 (PAL)
Vertical Sync Frequency	60 Hz (NTSC) / 50 Hz (PAL)
Gamma Consumption	0.45
Built-in Lens	F 2.8 (Day and Night Lens)
Storage Temperature	-30°C ÷ 60°C
Working Temperature	-10°C ÷ 45°C
Power Supply	3.6 ÷ 6 VDC
Power Current	130 mA (max)
Dimension (mm)	Ø20 x 28 mm (less than)
