Mobile Phone Jammer with Wide Band SJ-006DGW

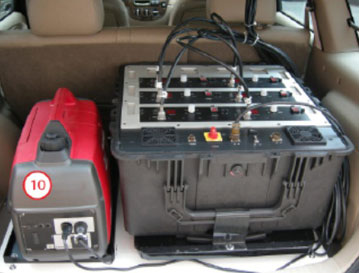

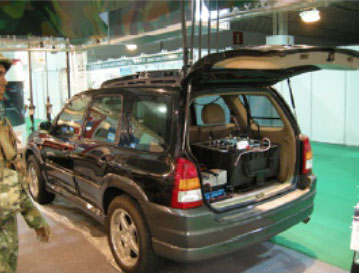

SJ-006DGW in CAR SJ-006DGW in CARSJ-006LAU

Specifications:

  TX frequency :   851/869 ~ 894 MHz
TX frequency : 925/936 ~ 965 MHz
TX frequency : 1800 ~ 1990 MHz
TX frequency : 2110 ~ 2170 MHz

Total output power : 160 W
800 MHz: 40 W
900 MHz: 40 W
1800-1950 MHz: 40 W
2100-2200 MHz: 40 W
RF Power output control: 10W/ 20W/ 30W/ 40W with digital display

Signal source: PLL synthesized
RF Cable: RG214 / 5M (HUBER & SUHNER)
Wired Remote control: RS-485
Sector Antenna: 12dBi each band
EIRP for each band: over 400W
Cover network standards: AMPS, N-AMPS, DCS, NMT, TACS, GSM, CDMA, TDMA, IDEN, UMTS
Input power: AC 110-240V / 50-60Hz or DC 20 ~ 28V DC / 60 ~ 65AH
Dimension: 690mm (L)x 698mm( W)x 415mm (D)
not include sector antenna.

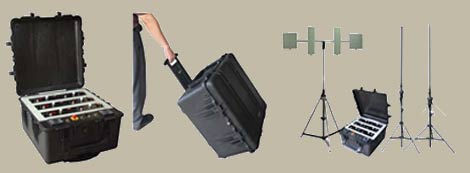

(Pelican 1640 case)
Weight: 45 Kg (approximately)
Operating temperature: -20°C ~ +60°C
Humidity: 5% ~ 90%

Wide Band frequency: TX frequency 20 ~ 110 MHz / Output 50W adjustable./
Stand-alone modular design and individual power control.
Tx frequency 100 ~ 500MHz / Output 50W adjustable./
Stand-alone modular design and individual power control.
Full band barrage jamming with 3 lockout of each bands function.
Temperature over & VSWR over protection.
Whip antenna with 5 dB gain up.

Advantage:

  • Stand-alone modular design and individual power control
  • Designed to cut off down-link only.
    Therefore it doesn’t have Interference to base station and repeater
  • Output failure indicating with sound alarm and LED display
  • Temperature over protection
  • VSWR over protection for each modular
  • Working status indicator for each band modular

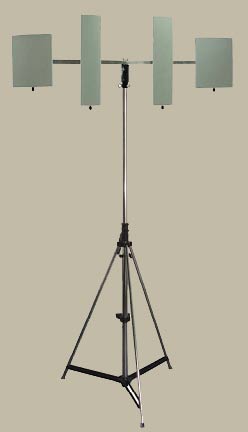

SJ-006DGW Sector Antenna Specification:

Antenna Type: GP-ANTENNA
Model No: 1GP-0808N 1GP-0908N 1GP-1812N 1GP-2112N
Picture: 1GP-0808N 1GP-1812N
Frequency Range: 875.5±25MHz 945±25MHz 1877±25MHz 2140±40MHz
Gain: 8dBi 12dBi
VSWR: ≤1.5
Input Impedance: 50±5Ω
Withstanding Power: MAX 30W
Connector Type: N Type Male
Length: 1560±5 mm
Weight: Aprox. 430±20g

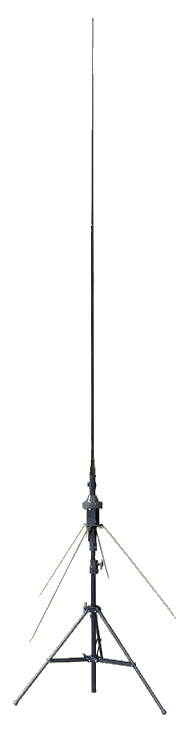

VHF Broadband Antenna Specification:

Frequency Range: 20 - 110MHz

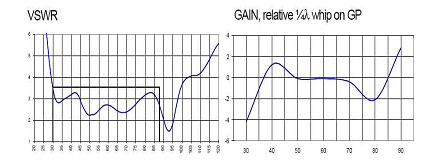

Gain: see diagram, overleaf
VSWR: see diagram, overleaf
Nominal impedance: 50Ω
Power rating: 100W
Connector: to be specified
Radiation pattern: Azimuth: Omnidirectional

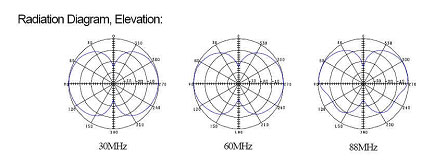

Elevation: See overleaf
Polarization: Vertical
Length, mounted: 3.1 m
Weight: 2.0 kg, ex. base
Wind rating: 55 m/s = 125 mph
Temperature range: -55°C .. +55°C; (-67°F.. +131°F )
Finish: Polyurethane lacquer, olive drab.
Design: Centerfed dipole.
Radiating elements completely enclosed in epoxy/fibreglass laminate.
Metal parts are brass and stainless steel.

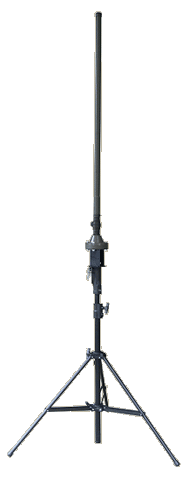

VHF Broadband Antenna Specification:

Frequency Range: 100 - 512MHz

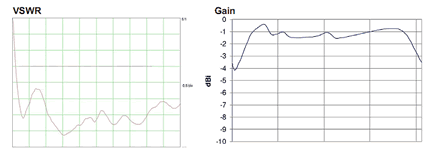

Gain: -5.. 1.5 dBi, see reverse side
VSWR: ≤3.5
Nominal impedance: 50Ω
Power rating: 50W +0.8dB, 10 min
Connector: BNC female, others on request
Radiation pattern: Azimuth: Omnidirectional
Polarization: Vertical
Length: Total: 1.25m
Whip: 1.05m
Base: 0.23m
Weight: Total: 3.65kg Whip: 1.4kg Base: 2.25kg
Wind rating: 55 m/s = 125 mph
Temperature range: -55°C .. +71°C; (-67°F.. +160°F )
Finish: Polyurethane lacquer, olivedrab, other colours on request.
Design: Broad band centerfed dipole.
Radiating element completely en-closed in epoxy/fiberglass laminate.
Metalparts arebrass and stainless steel.
Installation: Standard 4 hole NATO base with spring

Who needs Cellular Phone Jammer?

Government agencies use cellular phone jammer as a deterrent to terrorist activity and to keep terrorists from detonating a bomb from miles away or even from outside the country by simply placing a call to the mobile phone.

Law enforcement also uses cellular phone jammer in hostage situations to keep the suspect isolated.

Banks use the cellular phone jammer to prevent robbers from tipping off outside accomplices to departing customers with large withdrawals.

Prison. The use of cellular phone jammers in prisons stops the use of contraband mobile phones.

Business people. Cellular phone jammer can prevent espionage. Cellular Phone Jammer helps protect business, conference room, vehicle, hotel room and home from the invasion of privacy through the mobile phone and surveillance equipment like Spy Phone, GSM Bugs, GSM/Cellular Bugs, GSM/Cellular Transmitters.

School/ Library/ Lecture hall Cellular Phone Jammer helps prevent cheating on tests with mobile phone and helps mobile phone etiquette

Restaurant/ Theater/ Concert/Church/ Mosque/ Cathedral/ Temple Cellular Phone Jammer helps prevent mobile phone abuse.

You need to use it to protect your private space.
