Digital / Analog UHF Receiver STV-02

Product has been discontinued!
STV-02 - Combination of analog and digital receiver and remote control transmitter.

The STV-02 is compatible for operation with mini transmitters of the series STR-100, STR-200, STR-300, STR-500, STRC-100, STRC-200, STRC-300, STRC-400 and STRC-400A and also compatible for operation with another NFM- and WFM-transmitters which are working in the same frequency range as STV-02.
The receiver has built-in remote control transmitter.

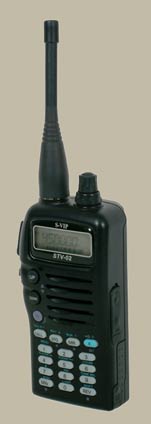

STV-02
  Features:
  • Built-in Remote Control Transmitter
  • 100 memory channel capacity
  • WFM/NFM modulation
  • Adjustable frequency step
  • Tone control
  • Search function
  • Scan function
  • Li-polymer rechargeable battery
  • Fast charging time
  Specification:
Receiver
Frequency range:
  band 1 400MHz ÷ 470MHz
  band 2 590MHz ÷ 650MHz
Frequency step 5kHz/10kHz/25kHz/100kHz/500kHz
Modulation: WFM, NFM
Memory channel capacity: 100
Sensitivity:
  WFM -109 dBm
  NFM -118 dBm
Audio output power: 300 mW

Transmitter
Frequency: 315 MHz
Output power: 3W
Modulation ASK
Burst time 6 Sec

General
Power supply: 7.2VDC (Li-pol battery, 1100 mA/h)
Operation time up to 10 hrs
Dimensions 120 x 54 x 34 mm
Weight 300 g
Charger 12V, 1A
Charging time 120 min
View Quick start STRC-400 Quick start
